BMW Fault Code 030E0A

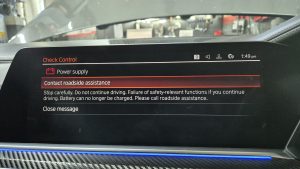

“Stop carefully. Power supply.”

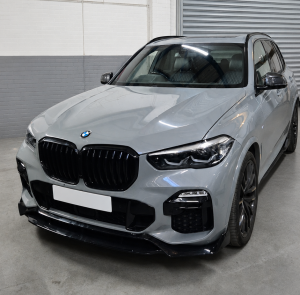

When Mrs N saw this message appear on the dashboard of her BMW X5 M40D, alongside a red battery icon, she didn’t know what to make of it.
This wasn’t a routine advisory. Her vehicle was reporting a fault within the power supply system, and continuing to drive could compromise vehicle operation and system functionality.
What made it harder to process was the timing…
Mrs N had left her BMW parked at the airport for two weeks during a holiday. Before she travelled, the vehicle had been completely trouble-free. On her return, a warning she had never encountered before was on the dashboard, and the check control system was displaying a power supply message.
Keen to find out what had happened, she searched online for a BMW diagnostic specialist. After reading reviews and a friend’s recommendation, Mrs N chose Quality Car Service, Milton Keynes, and brought her BMW X5 in for a dependable and detailed investigation.
In this blog, you’ll discover how our specialists diagnosed BMW fault code 030E0A, identified the origin of the power supply warning, and carried out the repair.
Assessing the BMW X5 M40D: How We Began the Power Supply Investigation
When Mrs N arrived at Quality Car Service, Milton Keynes, our BMW specialists wanted to hear the full story of what she had experienced before anything else.
Before the hands-on investigation begins, we always take time to understand what a driver has noticed and observed. That early conversation provides our team with the direction needed to make the investigation as effective as possible.
Mrs N described the red battery icon and the “Stop carefully. Power supply.” message that appeared after her BMW was left unused for 2 weeks. There had been no prior signs of trouble, no warnings, and no recent work on the vehicle.
Once that background was clear, our technicians began the first set of checks.
Our initial assessment included:
- Starting the vehicle and monitoring the warning messages and live serial data to verify the fault was active.

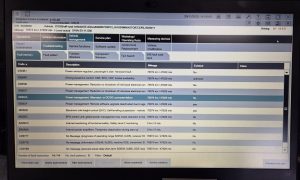

- Running a full system scan using manufacturer-level diagnostic software to capture all stored and current fault codes.
- Inspecting relevant components visually for any clear signs of damage or disconnection.

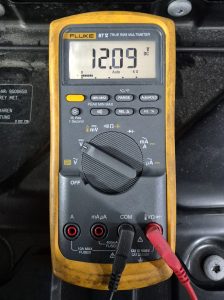

- Performing initial electrical checks without any component removal.
The scan identified one important fault code: 030E0A, described as “Power management: Alternator or DC/DC converter failure”.
What Is BMW Fault Code 030E0A?
BMW fault code 030E0A indicates a fault within the vehicle’s power management system. In 48V mild-hybrid models, the fault may involve the starter-generator, the DC/DC converter, or related wiring. The code by itself does not reveal which component in the system is responsible.
With several potential causes highlighted by the fault description, a thorough investigation was needed to determine the actual source before any components were replaced.
What Was Behind the BMW X5 Power Supply Fault?
Once BMW fault code 030E0A had been confirmed, our team turned to identifying precisely what was causing the power supply fault.
A conventional vehicle with this type of fault would typically point the investigation at the alternator and charging circuit. The BMW X5 M40D isn’t built that way, though. As a 48V mild-hybrid, it requires a fundamentally different diagnostic approach.
Instead of a standard 12V alternator, this BMW relies on a 48V starter-generator. This component is responsible for starting the engine and generating power for the 48V electrical system, which then supplies the 12V network via a DC/DC converter.
If a fault occurs anywhere in this chain, the effects can spread across both the 48V and 12V systems, triggering warnings in multiple control modules.
Our BMW specialists accessed the manufacturer’s technical information system, reviewed current flow diagrams, and identified any relevant technical service bulletins associated with the power supply fault.
The findings from this research served as the basis for a structured test plan prepared by our technicians.
Using the manufacturer’s diagnostic tool, our team developed and implemented a repair plan based on fault codes recorded across the vehicle’s control modules.
Our technicians then brought in specialist electrical and load-testing equipment to measure the performance of the power supply system across the wiring, connectors, and the 48V starter-generator.
There was no question about the outcome…
The 48V starter-generator was not operating within expected parameters, which had caused the BMW fault code 030E0A and the power supply warning Mrs N had seen on her dashboard.
How Does a 48V System Fault Impact the BMW X5 M40D?
The BMW X5 M40D features a 48V mild hybrid system. This is a fundamentally different technology from a plug-in hybrid or a fully electric vehicle. It has no external charging capability and cannot be used for electric-only driving.
What it does is support the diesel engine by boosting performance during acceleration, recovering energy during braking, and supplying electrical systems with power.
The 48V starter-generator is at the centre of this system. By combining the functions of a starter motor and alternator into one unit, it works with a DC/DC converter to keep the 12V system powered. When this component fails, the vehicle’s ability to manage its power supply is compromised, which can trigger warnings, as Mrs N experienced.
Faults of this nature within the 48V system are often categorised as a BMW hybrid charging fault. On this BMW X5 M40D, the fault is entirely unrelated to any high-voltage battery found in plug-in hybrids or electric vehicles.
The fault concerns how the vehicle produces and distributes electrical energy across its systems. When a BMW hybrid charging fault develops, the vehicle loses the ability to generate and control that energy as the manufacturer intended, and that is what caused the power supply warning on Mrs N’s dashboard.
How Our Specialists Resolved the BMW X5 Charging Problem
After confirming the root cause, our team contacted Mrs N to share a detailed account of the investigation’s findings.
We took her through how the 48V starter-generator was not performing within expected parameters, the reason it had set off the BMW battery warning light and the power supply message, and the steps required to fix the problem.
At Quality Car Service, Milton Keynes, no work starts until you are fully informed about the fault and have provided your consent. Mrs N was satisfied with the explanation and gave our team the green light to proceed with the repair.
Our BMW specialists then completed the following work:

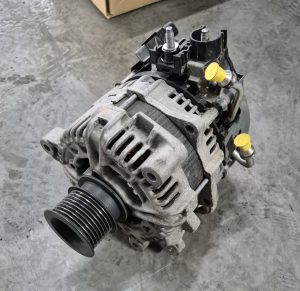

- Carefully removed the faulty 48V starter-generator and checked the surrounding mounting area for any signs of secondary damage or deterioration.
- Installed a replacement 48V starter-generator.
- Carried out the necessary programming through manufacturer-level software, registering the new component with the vehicle’s control systems and confirming full communication across all modules.
Once the replacement starter-generator was fitted and all programming completed, the BMW X5 charging problem was ready for final verification.
Was the BMW X5 Power Supply Fault Fully Resolved?
Once the replacement 48V starter-generator had been installed and software programming was complete, our technicians moved on to a thorough set of post-repair checks to verify the fault had been completely resolved.
Our team verified the repair through the following steps:
- The stored 030E0A fault code was cleared using manufacturer-level software.
- A full scan was performed across all control modules to ensure no further fault codes remained in the system.
- The red battery warning light was confirmed as cleared, and no power supply messages were left in the check control system.
- Live serial data was monitored to verify that both the 48V and 12V charging systems were performing within expected parameters.
The results confirmed the BMW hybrid charging fault repair was successful.
The power supply system was working as the manufacturer intended; the warning had cleared from the dashboard, and no faults remained in the system.
By following a structured diagnostic process, our team traced the BMW fault code 030E0A to its precise cause, without unnecessary part replacements or guesswork. From the opening investigation to the finished repair, everything was completed in one visit.
Once verification was complete, our specialists contacted Mrs N to confirm that her BMW X5 was ready for collection.
She was delighted with the result, the clear and honest communication throughout, and the smooth turnaround, all at a lower cost than a comparable main dealer repair.
