P2681 Fault Code
You turn the key, the engine starts without hesitation, and the car pulls away just as it always does.
Everything feels completely normal…
Except for one thing: there’s an amber engine management light on the dashboard, and you have no idea what’s triggered it.

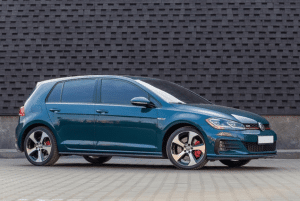

That was the exact position Mrs L found herself in with her Volkswagen Golf GTI.
The engine management light had appeared on her way to work, with no accompanying symptoms and no prior events that might have caused it.
Not willing to leave it uninvestigated, Mrs L searched for a garage with genuine Volkswagen expertise. After reading reviews, she brought her Golf GTI to our VW specialists at Quality Car Service, Milton Keynes.
In this article, you’ll see how our team conducted a detailed investigation, identified the true cause behind the warning light, carried out the correct repair, and handed her Golf GTI back in full working condition.
Evaluating the Golf GTI Engine Management Light
Our VW specialists’ priority when Mrs L arrived at Quality Car Service, Milton Keynes, was to take the time to hear what she’d been experiencing.
Mrs L explained that her car’s engine management light had switched on with no clear cause.
Her Golf GTI was performing just as it always had, with no difference in engine behaviour or driving feel. There had been no recent servicing or repairs, and she hadn’t noticed anything else out of the ordinary.
Gathering this information at the start of any investigation is essential.
Understanding what the driver has experienced, alongside what remains unchanged, allows our team to steer their assessment with precision rather than assumption.
Using the information from Mrs L, our technicians began the initial round of checks:
- A visual inspection was conducted to spot any apparent damage, loose fittings, or components that looked out of place.
- A detailed fault code scan was completed using Volkswagen manufacturer-level software to identify any stored or active codes.
Nothing concerning emerged from the visual inspection. However, the fault code scan produced one significant finding:
- P2681 00, Engine Coolant Bypass Valve Control Circuit Open.
This informed our experts that the engine control unit had registered a fault in the electrical circuit responsible for the VW Golf GTI coolant bypass valve. This component forms part of the vehicle’s cooling system.
A Volkswagen P2681 fault code indicates that the engine management system has detected a fault, but it doesn’t identify the cause.
The Golf GTI cooling system fault could originate from the valve, the wiring, a connection, or elsewhere in the circuit. A deeper investigation was required to determine the true cause of the issue.
Tracing What Triggered the P2681 Fault Code on the Golf GTI
Now that the P2681 fault code had been confirmed, the next priority was understanding what lay behind it. A fault code draws attention to the area of concern, but identifying the actual cause demands a methodical, evidence-led approach.
Our VW specialists at Quality Car Service, Milton Keynes, started by consulting Volkswagen’s official technical information software. This opened up access to manufacturer data, including known concerns, wiring diagrams, and detailed component information relevant to the VW Golf GTI coolant bypass valve and its associated circuit.
As your local independent VW specialist, our experts have access to the same level of technical information as the main dealerships.
During this research, our experts discovered a known issue documented by Volkswagen that aligned with the symptoms this particular Golf GTI was exhibiting.
With that research to guide them, our team constructed a targeted test plan:
- Use the manufacturer software to actively test the coolant bypass valve, commanding it to operate and recording its response.
- Refer to Volkswagen wiring diagrams to map the full electrical circuit serving the valve.
- Attach an oscilloscope to measure the signal condition and quality of the wiring connected to the coolant bypass valve.
When our expert technicians commanded the coolant bypass valve to operate via the VW software, it failed to respond. This indicated the valve was not functioning as it should, and that closer examination of the circuit was essential.
To determine whether the problem lay within the valve or the wiring, our experts attached an oscilloscope, a precision instrument for measuring electrical signals, and tested the circuit firsthand.
The oscilloscope readings confirmed that an internal valve failure was blocking the circuit from working correctly. It was this electrical fault that had compromised the control circuit, resulting in the P2681 fault code.
This result made clear why the engine control unit had flagged the issue. The valve’s circuit had drifted beyond its expected operating parameters, leading the ECU to illuminate the engine management light.
With the true cause now confirmed, our team were ready to speak with Mrs L and outline the steps required to put things right.
What Was Needed to Resolve the Golf GTI Coolant Valve Failure?
Once the root cause of the P2681 fault code had been confirmed, our technicians called Mrs L to explain the findings in full.
We described how the VW Golf GTI coolant bypass valve had failed internally, triggering her car’s engine management light. We also made clear why fitting a high-quality replacement valve was essential to bring the cooling system back to correct operation and resolve the Volkswagen P2681 fault code.
At Quality Car Service, Milton Keynes, no work begins until you fully understand the problem and have given your consent to proceed. You remain in complete control from start to finish.
Mrs L was reassured that the fault source had been identified and gave our team permission to proceed with the repair.
Our VW specialists then performed the replacement of the VW Golf GTI coolant bypass valve in accordance with Volkswagen’s approved procedures.
The defective coolant bypass valve was removed, and a new replacement valve meeting manufacturer specifications was installed to restore the VW Golf GTI cooling system to correct working order.
The associated wiring and connections were inspected and tested to verify that the control circuit was sound and free from any further faults.
With the replacement valve in place and connected, the cooling system was ready for a comprehensive set of confirmation checks to ensure the fault had been completely resolved.
Verifying the Golf GTI Coolant Valve Repair Was Successful
Once the new VW Golf GTI coolant bypass valve had been installed, our technicians performed a comprehensive series of checks to verify that the Volkswagen P2681 fault code had been completely resolved and that the vehicle’s cooling system was performing as VW specified.
Our team completed the following confirmation steps:
- Cleared all stored fault codes using Volkswagen manufacturer-level diagnostic equipment.
- Performed active testing on the new coolant bypass valve, commanding it to operate and verifying that it responded as expected.
- Completed a full system scan to confirm that no further fault codes had been recorded.
- Monitored live data to verify the cooling system and bypass valve were working within expected parameters.
The confirmation checks validated that the coolant bypass valve repair had been completed successfully. The valve was responding correctly, the engine management light remained off after testing, and no additional faults were detected.
By tracing and resolving the engine coolant bypass valve failure early, the issue was prevented from developing into a more significant and costly problem.
With the Golf GTI cooling system fault repair confirmed, our team called Mrs L to let her know the Golf GTI was ready to collect. She was delighted with the result, the expertise demonstrated by our VW specialists, and the quick turnaround, all at a better value than a main VW dealership.
Mrs L left Quality Car Service, Milton Keynes, with her VW Golf GTI fully restored and complete confidence that the fault had been accurately diagnosed, repaired, and confirmed.
VW Engine Warning Light? Let Our VW Specialists At Quality Car Service Help
Is your VW Golf GTI showing an engine management light? Getting the issue assessed early is the most effective way to stop a minor fault from developing into something bigger… Which could cost you more money to fix.
Cooling system faults can arise for many reasons, and having the cause identified promptly helps minimise the risk of additional wear or damage to surrounding components, protecting you from expensive repair bills further down the line.
Expert testing by a VW specialist is key to understanding what is happening within your Volkswagen’s cooling system.
At Quality Car Service, Milton Keynes, our VW specialists use Volkswagen manufacturer-level diagnostic software, technical data, and hands-on experience to investigate faults like the P2681 fault code and get them resolved correctly the first time.
