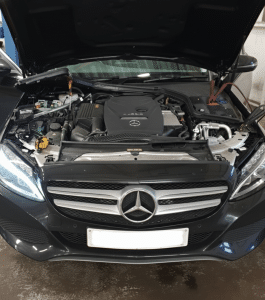

Mercedes CLS320 Boost Problem
Mr T had been dealing with his Mercedes CLS320 boost problem for longer than he cared to remember.
The car had already been seen by more than one garage, but each time the result was the same: no clear explanation and no lasting fix. The symptoms were still there, and if anything, they were getting worse.
The performance issues showed up in different ways. Sometimes the engine barely responded when Mr T put his foot down. Other times, the car would be driving fine and then suddenly lose all power, with no warning at all. It left him nervous about using the car for longer journeys.
A Mercedes CLS320 should deliver confident, effortless performance. Instead, Mr T’s car had become something he couldn’t rely on, and despite several garage visits, nobody had been able to explain why.
That changed when he brought the car to Quality Car Service in Milton Keynes. Our team has the experience, the equipment, and the structured approach needed to get to the bottom of the faults other garages leave unsolved.
It was time to find out what was really going on.
Reviewing the Symptoms and Running Initial Checks
Once the Mercedes CLS320 was with us at Quality Car Service in Milton Keynes, the first step was to sit down with Mr T and hear exactly what he had been experiencing. Rather than jumping straight to the tools, we wanted a full account of what was happening: the conditions when boost dropped away, how the problem had changed over the weeks, and anything else Mr T had noticed about the car’s behaviour. This detail shapes the direction of our testing and helps avoid missed clues.
With that understanding in place, we connected our dealer-level diagnostic equipment to the vehicle. The scan pulled up six stored fault codes, each linked to a different part of the engine’s boost and emissions systems:
- P2626: DPF soot content too high The diesel particulate filter had accumulated excessive soot, suggesting the system was not regenerating as it should.
- P2530: Inlet port shutoff motor short to ground A fault with the swirl flap actuator, the part that controls airflow through the intake manifold to support engine efficiency and emissions control.
- P2527: EGR positioner short to ground The exhaust gas recirculation valve was not receiving the voltage needed to control exhaust flow back into the engine.
- P2514: Crankcase ventilation line heater short to ground A heating element within the emissions system had lost its electrical supply.
- P2526: Charge pressure positioner short to ground The turbocharger’s control motor had lost power, directly affecting how the system managed boost pressure.
- P2376: Throttle valve actuator voltage low The throttle valve, which assists with airflow control and emissions management, was returning a low voltage reading.
Six actuator-related fault codes appearing at once told our technicians this was unlikely to be six separate problems. A pattern like this, with multiple Mercedes fault codes P2626 P2530 P2527 and others all flagging voltage issues, often points toward a shared electrical issue.
The next step was targeted testing to find out exactly what connected them.
Identifying the Root Cause of the Mercedes CLS320 Boost Problem
The number of fault codes was unusual, but the pattern they formed was the real clue. Our technicians needed to establish whether these were independent failures or symptoms of a single underlying problem. That meant working through the circuit methodically, component by component.
Step 1: Checking the Power Supply
The first step was to determine whether the affected components were all connected to the same electrical feed. Using the Mercedes wiring diagram, our technician traced each actuator: the turbocharger’s charge pressure positioner, the EGR valve, the swirl flap actuator, the throttle valve, and the crankcase ventilation line heater.
On this vehicle, these components share a fuse supply, located in the engine’s front control module.
- The fuse was inspected and found to be blown.
- With that fuse open, every component on the circuit would have lost power simultaneously, explaining why so many faults had appeared together.
A new fuse was installed to restore the circuit.
- Several fault codes cleared straight away, confirming the first stage of the diagnosis was on track.
- Other codes reappeared shortly after, revealing that an underlying fault on the circuit was still drawing excessive current.
This made it clear the electrical problem sat somewhere on that shared circuit. The next step was to examine each connected component in turn.
Step 2: Inspecting the Components on the Circuit
Each actuator and sensor on the shared fuse circuit was inspected for damage or contamination.
The inspection revealed two significant results:
- Oil contamination around the swirl flap actuator The actuator responsible for controlling the intake manifold’s swirl flaps was coated in oil. This type of contamination can cause internal electrical shorts or damage the motor inside the actuator.
- Damage to the turbocharger impeller The turbo’s compressor wheel showed clear signs of damage and wear. Oil from the failing turbo had migrated into the intake area, contaminating nearby components.
These discoveries explained both the electrical and mechanical sides of the problem. The oil-soaked actuator had most likely caused Fuse F44 to blow, while the damaged turbo was responsible for the intermittent boost loss Mr T had been reporting.
Step 3: Testing Circuit Stability
With the new fuse in place and the fault pattern established, the next step was to confirm how the circuit performed under load.
- Current draw was measured across each actuator feed to check that no other component was shorting internally.
- With the swirl flap actuator disconnected, the fuse remained intact, providing clear confirmation that it was the main source of the electrical fault.
- The turbocharger actuator, though now receiving voltage, continued to underperform due to the mechanical damage already identified.
This confirmed the link between the faults and what had caused them.
Step 4: Planning the Repair
With both root causes identified, the next stage was to put together a repair plan that would return the system to full working order while keeping costs manageable for Mr T. The electrical supply issue, traced to the shared fuse, had already been resolved during the diagnostic evaluation when the fuse was replaced to restore the affected circuit.
The remaining repair plan addressed each confirmed fault:
- Replacing the damaged turbocharger to restore boost control and consistent engine output.
- Replacing the failed swirl flap actuator to correct the electrical fault and prevent further fuse failure.
- Repairing the swirl flap mechanism using a new connecting rod and repair kit, removing the need for a full inlet manifold replacement.
- Cleaning the intake area to remove oil residue and protect the newly fitted parts.
With the diagnostic evaluation complete, we were confident this plan would fully resolve the Mercedes CLS320 boost problem and deliver a dependable, long-term result for Mr T.
How the Mercedes Turbo Repair Was Completed
Once the diagnosis was finished, we explained everything to Mr T, walking him through each fault and the repairs required. With his approval, we moved ahead with a detailed, multi-stage repair that combined mechanical replacement and electrical correction to bring the Mercedes back to full health.
Here’s what was carried out:
- Turbocharger replacement A new OEM turbocharger was fitted, restoring the engine’s ability to manage boost pressure correctly and deliver reliable performance.
- Swirl flap actuator replacement The faulty unit was replaced to eliminate the short circuit that had been blowing Fuse F44, returning full control to the intake system.
- Swirl flap mechanism repair The swirl flap assembly was repaired using a new connecting rod and repair kit.
- Intake system clean With the mechanical repairs finished, the intake area was thoroughly cleaned to clear remaining oil residue and prevent future contamination.
- Circuit stability check With Fuse F44 already replaced during the diagnosis, a final current-draw test was carried out to confirm the circuit remained stable and all actuators were functioning correctly.
With all repairs complete, the car was put through a thorough round of final testing. We checked boost pressure under load and re-scanned for fault codes. The engine was then run through a series of operating conditions to confirm nothing from the original problem remained.
Every result came back clean. The circuit was stable, boost delivery was consistent, and the fault codes stayed clear. The Mercedes engine performance fix was fully confirmed.
Restored Performance for Mr T’s Mercedes CLS320
The end result spoke for itself. Mr T’s Mercedes CLS320 was back to delivering the smooth, responsive power it was built for. Boost pressure held steady on test, and the engine ran with the consistency and confidence that had been missing for months.
The job had required a multi-stage repair across both the mechanical and electrical systems, but our step-by-step diagnostic process meant every fault was identified, confirmed, and resolved before the car was returned.
Mr T was very pleased with the result. After taking his car to several garages without success, he was impressed that Quality Car Service diagnosed all the faults accurately and carried out the full repair. By repairing the swirl flap mechanism instead of replacing the entire inlet manifold, we also brought his costs down without compromising on the quality of the work.
While the repairs were being completed, Mr T was able to keep his routine going using one of our courtesy cars, making sure the process caused as little disruption as possible while his Mercedes was brought back to full health.
