Audi Q5 AdBlue Repair
When Mr F arrived at Quality Car Service in Milton Keynes, he was worried. Having visited a dealership, his Audi Q5 was still showing the same warning light. It hadn’t been resolved.

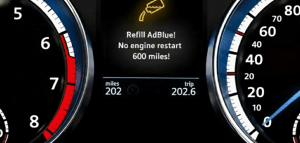

It was the AdBlue warning light, alongside a countdown message on the dashboard that read: “No engine restart after 600 miles.”
The AdBlue tank had already been filled during the visit to the dealership. A software update had been carried out. But the issue persisted.
With no clear resolution and the restart limit getting closer, Mr F turned to our technicians for a technical evaluation. What followed was a measured investigation that uncovered exactly what had gone undetected. And a successful fix.
This was a diagnostic process that demanded technical knowledge, manufacturer data, and methodical problem-solving.
Here’s how we located the fault and carried out the Audi AdBlue countdown issue fix.
Initial Evaluation for the Audi Q5 AdBlue Countdown Fault
At Quality Car Service in Milton Keynes, we begin our evaluations by gathering information from our clients. So first, we asked Mr F about the ongoing issue with his Audi Q5. The AdBlue warning light had been illuminated for some time, and a message on the dashboard read: “No engine restart after 600 miles.”
He told us the tank had already been topped up, and the vehicle had been into the dealer for a software update. Even so, the warning remained, and the countdown continued.
We connected our dealer-level diagnostic software and ran a complete system scan. One fault code stood out:
P20E8 – Reducing Agent Pressure Too Low
This fault indicated that the system wasn’t building the pressure needed to inject AdBlue into the exhaust.
The SCR system (Selective Catalytic Reduction) helps reduce harmful nitrogen oxide (NOx) emissions. It does this by injecting a pressurised supply of AdBlue, a urea-based fluid, into the exhaust stream, where it reacts to convert pollutants into harmless nitrogen and water vapour. But for the injection to occur, the system must first pressurise the fluid. If no pressure builds, the process can’t begin, and you’ll likely have a dashboard warning light to let you know there’s a problem.
To check what the control unit’s data did during a test drive, we took the Q5 out for a short road test while observing the serial data. Despite being instructed to activate, the system recorded no pressure.
From there, we created a structured diagnostic plan to check the full circuit, including the wiring, the pump, and the module, to pinpoint exactly where the failure was occurring.
Diagnosing the Fault That Kept the Audi Q5 Countdown Active
With the initial testing complete and the system still unable to generate pressure, our team at Quality Car Service began the next stage of the diagnosis. The SCR system is designed to activate the AdBlue pump to pressurise the delivery line before any injection can take place. That wasn’t happening here, and we needed to find out why.
We first checked the AdBlue level and quality. There were no issues to report: the tank was full, and the fluid was in good condition.
Next, we accessed the pump and control module and ran a full electrical check using Audi’s official wiring diagram. Voltage supply, ground paths, and circuit continuity were all confirmed as good.
With the wiring verified, we triggered the system using our dealer-level diagnostic software. The module sent the activation signal, but there was no response from the pump, no fluid movement, and no pressure being built.
That ruled out both a communication fault and an electrical supply issue. The pump was receiving instructions, but not responding.
The diagnosis was now complete. The AdBlue pump had failed, and it would need to be replaced for the system to operate correctly again.
How We Fixed the Faulty Audi AdBlue Pump
After identifying the failed pump and confirming the diagnosis, we explained the issue to Mr F and received approval to proceed with the repair.
The AdBlue pump on this vehicle is built into the tank assembly at the rear. We accessed the unit by removing the lower covers, then disconnected the electrical connector and fluid hoses. The old pump was removed, and the sealing area was cleaned to prepare for installation.
We fitted a new OEM AdBlue pump, secured it in position, and reconnected all lines and connections. The system was then topped up with fresh AdBlue fluid.
With the new component installed, we used our diagnostic software to carry out post-repair checks. This included clearing the stored fault, flushing the lines, and verifying that the system was now generating pressure correctly.
All system values returned to normal, and the countdown warning cleared as expected.
AdBlue Countdown Fault Resolved and System Fully Restored
The results were immediate. The AdBlue warning light disappeared from the dashboard, and the restart countdown was no longer visible on the dashboard. Pressure readings returned to normal, and the ECU recognised the new component without running into further problems.
To confirm long-term stability, we ran multiple SCR activation cycles and monitored the system through our diagnostic software. All values remained steady, with no evidence of pressure loss or secondary issues.
Mr F’s Audi Q5 was now operating as it should. The issue that had persisted for weeks, despite a previous dealer’s attempt, was fully diagnosed and repaired in one visit. With the fault cleared and the system restored, Mr F left with complete confidence in the result.
For the team at Quality Car Service, this was another example of how structured diagnostics, the right tools, and technician expertise deliver results that last.
Expert Help for Audi AdBlue System Faults in Milton Keynes
Mr F had already tried the obvious steps. His Audi Q5 had been to the dealer, the AdBlue tank was full, and a software update had been applied. But the fault didn’t go away; meanwhile, the restart countdown kept ticking down.
When he brought the vehicle to Quality Car Service, we didn’t guess or assume. We followed a structured diagnostic plan using dealer-level tools and official Audi information to accurately trace the fault. That’s how we work.
Our technicians don’t just clear codes and hope for the best. We test what matters, explain what we find, and only recommend repairs once we know what’s wrong.
